Introduction

Healthy cartilage is essential for proper joint function. Pain-free movement is important for patients' well-being, since impairment affects one's ability to pursue work and leisure activities. Cartilage damage can occur through trauma, pathological states such as arthritis, or the normal wear that accompanies aging. Treatment for cartilage defects is hindered by the limited capacity of that tissue to undergo self-repair and healing. Attempts at self-repair result in local proliferation and increased matrix synthesis by chondrocytes, but the new tissue lacks the biomechanical properties necessary for long-term stability. Therefore, there is a need for innovative cartilage repair techniques.

In adults, chondrocytes maintain the extracellular matrix that gives cartilage its unique mechanical properties. Chondrocytes are long-lived and the development of new cells that are capable of producing cartilage de novo (i.e., chondroblasts) is not a normal part of adult cartilage physiology. One hypothesis is that synthesis of hyaline cartilage is coupled to skeletal growth. This hypothesis predicts that differentiation of new chondroblasts will be required to achieve cartilage repair. Therefore, a better understanding of the molecular mechanisms that regulate post-natal chondroblast differentiation would have a high impact on the design of strategies for cartilage repair.

Pre-Natal vs. Post-Natal Chondroblast Differentiation

Studies of embryonic skeletal development have provided a wealth of information on pre-natal chondroblast differentiation. As in other embryonic tissues, chondroblasts differentiate in an environment that is rich with developmental cues. Both positive and negative signals are present. These signals include growth factors (such as TGF-β and the bone morphogenetic proteins) and matrix components (hyaluronan, perlecan, collagens) that act to induce a genetic program in target mesenchymal cells. Perturbation of these signals disrupts chondrogenesis.

In vitro systems have been developed for induced chondrocyte differentiation of post-natal cells (bone marrow stroma, fat, etc.). Post-natal chondroinduction can be accomplished in vivo with implants of demineralized bone. This material induces endochondral osteogenesis and is used clinically for orthopedic and oral surgical applications. From animal studies,¹ it has been shown that an early step is attraction of cells that attach to particles of demineralized bone powder (DBP) and convert to chondroblasts. My collaborators, Drs. Julie Glowacki and Shuichi Mizuno, have developed an in vitro collagen sponge culture device that mimics the geometry and density of in vivo DBP implants. With this culture system, it is possible to begin to define cellular events that occur during chondroinduction by DBP.

Gene Expression Studies in an In Vitro Model of Post-Natal Chondroblast Differentiation Induced by Demineralized Bone

In our model of induced chondrocyte differentiation,² human dermal fibroblasts (hDFs) are cultured in a bilaminate collagen sponge with demineralized bone powder (DBP) (Figure 1). After 7 days, hDFs that are associated with DBP show a chondroblast phenotype: the cells are surrounded by cartilage-like matrix that contains collagen type II, aggrecan, and typical proteoglycans.^2,3 We hypothesized that DBP activated a genetic program in target hDFs that is related to the chondroblast phenotype. To begin to define this program, we examined changes in gene expression induced by DBP that precede the chondroblast phenotype. Three days after hDFs are seeded onto sponges, the cells have established interactions with DBP but do not express cartilage-specific genes.⁴ Therefore, the 3-day time point was selected for these studies. Two different methods were used to identify genes that are affected by DBP (Figure 2). First, representational difference analysis (RDA), a PCR-based method of subtractive hybridization, was used to gain an overview of the cellular processes altered by DBP.^4-6 Second, cDNA macroarrays were used to test specific hypotheses about DBP's effects on specific functional classes of genes.^7,8

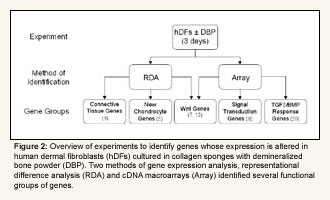

These studies on DBP-altered gene expression revealed several insights into early events in chondroblast differentiation in this experimental system (Figure 2). Expression of many functional classes of genes (cytoskeletal and matrix components, growth factors, protein synthesis and secretion machinery, transcriptional regulators) is altered by DBP. The diversity of these functional classes supports our hypothesis that DBP activates a programmatic shift in cell physiology.4 Altered expression of genes that encode matrix components (collagens, collagen-modifying enzymes) and cell-matrix interacting proteins (collagen receptors) suggests that an early step in post-natal chondrogenesis is the creation of a supportive extracellular environment. This step may be necessary because, unlike the programmed milieu of embryonic tissues, post-natal tissues lack the regulatory signals to promote chondrogenesis.⁹

In the course of these gene expression studies, we identified two members of the WNT gene family whose expression was altered by DBP.⁷ The fact that WNT genes were altered by DBP was striking because of the importance of that gene family in embryonic chondroblast differentiation and chondrogenesis. Therefore, the role of WNT components in chondroinduction by DBP was explored further.

The WNT Family, Signaling and Embryonic Chondrogenesis

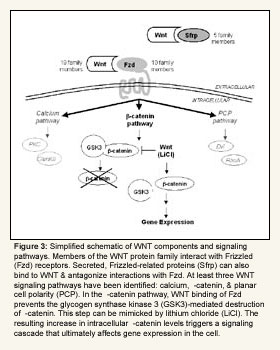

The WNT gene family encodes secreted proteins that interact with cellular receptors (encoded by FZD genes). WNT activity can be modulated by secreted, frizzled-related proteins (encoded by SFRP genes) that compete with Fzd to bind WNTs. These genes' families (hereafter referred to as WNT pathway components) form a regulatory network (Figure 3) that regulates cell fate and function in many tissues.

Intracellular signaling pathways that are activated by WNT proteins are complex. At least three pathways are known: the so-called β-catenin, calcium, and planar cell polarity pathways (Figure 3). Of these, the β-catenin pathway has been studied in greatest detail. In the absence of WNT, β-catenin is targeted for destruction via an interaction with glycogen synthase kinase 3β (GSK-3β). When some of the WNT proteins bind Fzd receptors, GSK-3β activity is inhibited and cytosolic β-catenin levels increase. This allows the downstream signaling events to proceed that culminate in altered gene expression. Treatment of cells with lithium chloride (LiCl) results in inhibition of GSK-3β,¹⁰ thereby mimicking WNT signaling via the β-catenin pathway (Figure 3).

During embryonic skeletogenesis, WNT components act as both positive and negative regulators of key events, including chondroblast differentiation, chondrocyte maturation, and joint formation.¹¹ The importance of WNT components in pre-natal chondroblast differentiation, and our finding that some WNT family members were affected by DBP, suggested that the WNT network might regulate post-natal chondroblast differentiation. Therefore, the DBP/collagen sponge model was used to test this hypothesis.¹²

WNT Genes Contribute to Chondroinduction of Post-Natal Finroblasts by DBP

The potential role of WNT genes in post-natal chondroblast differentiation of hDFs was explored by characterizing WNT component gene expression during culture with DBP, and by activating the WNT/β-catenin signaling pathway in the absence of DBP. Primers were designed for PCR amplification of all known human WNT, FZD, and SFRP genes. Gene expression levels of WNT components were measured in hDFs cultured in DBP/collagen and control collagen sponges by semi-quantitative RT-PCR. Prior to hDFs' interactions with DBP -- 12 hours after cells were seeded onto the sponges (Figure 4) -- WNT component gene expression levels were similar in DBP/collagen and control collagen sponges. After hDFs' interactions with DBP were well established (72h after seeding), altered expression of several WNT and FZD genes was observed: two genes were upregulated (average 175% of control) and three genes were downregulated (average 40% of control). Expression of SFRP genes was not affected by DBP on day 3. Many of the genes whose expression was changed by DBP on day 3 also showed altered expression on days 7 and 14, when the hDFs produced cartilage-like matrix. In contrast, WNT component genes whose expression was not changed by DBP on day 3 did not show altered expression on either day 7 or 14. These results showed that a subset of WNT pathway components is altered during chondroinduction (day 3) and chondrogenesis (days 7-14) by DBP.

Several of the WNT components that were altered by DBP are known to activate the β-catenin pathway. Therefore, the contribution of WNT/β-catenin signaling to chondroblast differentiation was assessed by exposing hDFs in collagen sponges (without DBP) to LiCl. On day 10, histology showed significantly more metachromatic matrix in LiCl-treated sponges than in sodium chloride- (NaCl) treated controls. The LiCl-treated sponges also tended to contain more sulfated proteoglycan than NaCl-treated controls. Therefore, activation of WNT signaling via the β-catenin pathway was sufficient to increase proteoglycan synthesis by hDFs cultured in collagen sponges. Taken together, these results on WNT gene expression and signaling in hDFs implicate the WNT regulatory network as mediators of post-natal chondroblast differentiation by demineralized bone.

Future Directions

In this study, activation of WNT signaling via the β-catenin pathway appeared to promote chondrogenesis. Another study, from a group led by Dr. Glowacki, also found that activating WNT/β-catenin signaling increased chondrogenesis in human cells.¹³ Results from other experimental systems that use mouse, chick, or rabbit, cells have shown both stimulatory^14,15 and inhibitory effects^16,17 of WNT/β-catenin signaling on chondrogenesis. The effect of WNT/β-catenin signaling is likely affected by cell type, maturational stage, and species. Recent data showing that the WNT/calcium signaling pathway can antagonize the β-catenin pathway^18,19 may also explain the observed duality of WNT/β-catenin signaling. The net effect of DBP-induced changes in WNT component expression on signaling pathways in this experimental system has yet to be determined. The potential roles for accessory proteins such as Lrp/arrow co-receptors must also be defined. Nevertheless, these results suggest that WNT signaling contributes to chondroblast differentiation induced by demineralized bone.

Acknowledgments

I thank J. D. Clark II and R. MacLean for technical assistance, and J. Glowacki, S. Mizuno, and S. Zhou for their contributions to this work. The WNT studies were supported by a grant from the Aircast Foundation (#SA-501).


Notes:

Dr. Yates is an Instructor in Orthopedic Surgery, Brigham and Women's Hospital and Harvard Medical School.

Please address correspondence to:
Karen E. Yates, Ph.D.
Orthopedic Research
Brigham and Women's Hospital
75 Francis Street
Boston, MA 02115

References:

1. Reddi AH, Huggins C. Biochemical sequences in the transformation of normal fibroblasts in adolescent rats. Proc Natl Acad Sci U S A 1972;69(6):1601-5.
2. Mizuno S, Glowacki J. Chondroinduction of human dermal fibroblasts by demineralized bone in three-dimensional culture. Exp Cell Res 1996;227(1):89-97.
3. Glowacki J, Yates K, Little G, Mizuno S. Induced chondroblastic differentiation of human fibroblasts by three-dimensional culture with demineralized bone matrix. Materials Science and Engineering C 1998;6:199-203.
4. Yates KE, Mizuno S, Glowacki J. Early shifts in gene expression during chondroinduction of human dermal fibroblasts. Exp Cell Res 2001;265(2):203-11.
5. Yates KE, Forbes RL, Glowacki J. New chondrocyte genes discovered by representational difference analysis of chondroinduced human fibroblasts. Cells Tissues Organs 2004;176(1-3):41-53.
6. Yates KE. Inferred functions of "novel" genes identified in fibroblasts chondroinduced by demineralized bone. DNA Cell Biol 2004;23(1):15-24.
7. Yates KE, Glowacki J. Gene expression changes in an in vitro model of chondroinduction: a comparison of two methods. Wound Repair Regen 2003;11(5):386-92.
8. Yates KE, Zhou S, Glowacki J. Genes that influence cell differentiation are altered by demineralized bone in vitro. J Bone Miner Res 2003;18:S134.
9. Yates KE, Glowacki J. Altered expression of connective tissue genes in postnatal chondroinduced human dermal fibroblasts. Connect Tissue Res 2003;44(3-4):121-7.
10. Hedgepeth CM, Conrad LJ, Zhang J, Huang H-C, Lee VMY. Activation of the Wnt signaling pathway: a molecular mechanism for lithium action. Developmental Biology 1997;185:82-91.
11. Church VL, Francis-West P. Wnt signalling during limb development. Int J Dev Biol 2002;46(7):927-36.
12. Yates KE. Demineralized bone alters expression of Wnt network components during chondroinduction of post-natal fibroblasts. Osteoarthritis Cartilage 2004;In press.
13. Zhou S, Eid K, Glowacki J. Cooperation between TGF-b and wnt pathways during chondrocyte and adipocyte differentiation of human marrow stromal cells. J Bone Miner Res 2004;19(3):463-70.
14. Grotewold L, Ruther U. Bmp, Fgf and Wnt signalling in programmed cell death and chondrogenesis during vertebrate limb development: the role of Dickkopf-1. Int J Dev Biol 2002;46(7):943-7.
15. Fischer L, Boland G, Tuan RS. Wnt-3A enhances bone morphogenetic protein-2-mediated chondrogenesis of murine C3H10T1/2 mesenchymal cells. J Biol Chem 2002;277(34):30870-8.
16. Fischer L, Boland G, Tuan RS. Wnt signaling during BMP-2 stimulation of mesenchymal chondrogenesis. J Cell Biochem 2002;84(4):816-31.
17. Ryu JH, Kim SJ, Kim SH, et al. Regulation of the chondrocyte phenotype by beta-catenin. Development 2002;129(23):5541-50.
18. Ishitani T, Kishida S, Hyodo-Miura J, et al. The TAK1-NLK mitogen-activated protein kinase cascade functions in the Wnt-5a/Ca(2+) pathway to antagonize Wnt/beta- catenin signaling. Mol Cell Biol 2003;23(1):131-9.
19. Topol L, Jiang X, Choi H, Garrett-Beal L, Carolan PJ, Yang Y. Wnt-5a inhibits the canonical Wnt pathway by promoting GSK-3-independent beta-catenin degradation. J Cell Biol 2003;162(5):899-908.
20. Glowacki J, Yates KE, Zhou S. Comparison of TGF-b/BMP pathways signaled by BMP-2 and demineralized bone powder in human dermal fibroblasts. J Bone Miner Res 2003;18:S184.
