Intra-Articular Anesthetic Injection of the Hip for Confirmation of Symptomatic Tears of the Acetabular Labrum: A Systematic Review
Kyle Alpaugh, MD, Catherine Logan, MD, Shivam Upadhyaya, MD, Scott D. Martin, MD
The authors report no conflict of interest related to this work.
©2016 by The Orthopaedic Journal at Harvard Medical School
BACKGROUND The purpose of this study was to review the evidence on diagnostic intra-articular anesthetic injections of the hip for confirmation of symptomatic injury to the acetabular labrum among hip arthroscopy candidates.
METHODS Broad search terms were used to identify relevant English literature in Pubmed, MEDLINE and CINAHL databases. Studies on diagnostic injection of the hip and intra-articular injections were included.
RESULTS A total of 1,172 original citations were identified and, of these, 6 (0.5%) met inclusion and exclusion criteria after full text review. Half of these studies were level IV evidence. All injections were administered under fluoroscopic guidance. Bupivacaine was the most commonly used intra-articular anesthetic. 85.8% of patients were identified as “positive” responders although the defining parameters of a “positive” response varied amongst the studies. No study analyzed the subjects who did not experience relief of pain or reported worse pain after intra-articular injection (IAI). No study reported the diagnostic sensitivity, specificity, negative predictive or positive predictive values for IAI in confirming symptomatic intra-articular pathology.
CONCLUSION Not every patient with a tear of the acetabular labrum experiences pain relief after diagnostic IAI. More women than men undergo IAI. Due to inconsistent reporting and lack of standardization in the methodologies for assessing the degree and significance of response to IAI, it is unclear if diagnostic IAI confirms symptomatic labral injury or non-specific intra-articular injury. Well-designed studies are needed to determine the clinical significance of pain relief after IAI among patients considered to be candidates for hip arthroscopy.
Symptomatic labral tears of the hip are most frequently seen in the setting of femoroacetabular impingement (FAI), a condition characterized by repetitive abnormal contact between the acetabulum and femoral neck resulting in progressive damage to the labrum, adjacent articular cartilage, and ultimately premature development of osteoarthritis.1,2 Surgical management of symptomatic labral tears and associated impingement has led to improved functional outcomes and reduced pain.3,4 However, the efficacy of surgical management is contingent upon an accurate diagnosis. This can be difficult given that there is no pathognomonic finding for this condition and several methods used to diagnose symptomatic labral tears have been cited as unreliable or currently lack substantial evidence-based support.5,6,7
First described by Kleiner et al., intra-articular anesthetic injections (IAI) have been traditionally used to localize and differentiate pain caused by osteoarthritis (OA) of the hip.8-14 Although IAI has minimal proven therapeutic benefit, immediate and significant pain relief appears to localize intra-articular pain generators to within the hip among patients harboring osteoarthritis.10,12 However, a recent meta-analysis of the literature on this subject concluded that no recommendation could be made regarding the role of diagnostic IAI for OA in clinical practice.15
Similarly, emphasis has been placed on pain relief after diagnostic IAI to corroborate presumptive labral injury.16-21 Among asymptomatic individuals, labral tears and osseous morphology that can be classified as pathologic have been noted to be common.22-24 Therefore, a simple diagnostic test that can be used to differentiate symptomatic labral injury from other causes of hip pain would be useful.
Many orthopedic surgeons adjunctively use the response, or degree of pain relief following diagnostic intra-articular anesthetic injection (IAI) of the hip, to confirm clinical suspicion of symptomatic labral tear, particularly in the setting of FAI.5,6 Despite the potential benefit of IAI for confirmation of symptomatic labral pathology amenable to arthroscopic intervention, there has been no formal review of the evidence that exists on this practice. The purpose of this study was to review the evidence on diagnostic intra-articular anesthetic injections of the hip for confirmation of symptomatic injury to the acetabular labrum among hip arthroscopy candidates. We hypothesize that patients with symptomatic labral injury do not experience pain relief after diagnostic IAI of the hip.
The electronic databases of PubMed, OVID MEDLINE (1946-present with weekly updates as well as In-Process & Other Non-Indexed Citations), and Cumulative Index of Nursing and Allied Health Literature (CINAHL) were searched in entirety up until the search date of February 12, 2015. The search terms “hip”, “injection”, “diagnosis”, “intra-articular” and “anesthetic” were used for the development of search phrases. Details regarding the search phrases utilized during the search process of this study can be found in Appendix 1. Search results were limited to those published in English and studies only involving human subjects.
Search Results, Study Selection, and Systematic Elimination

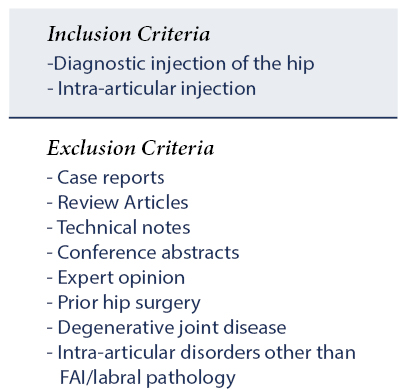

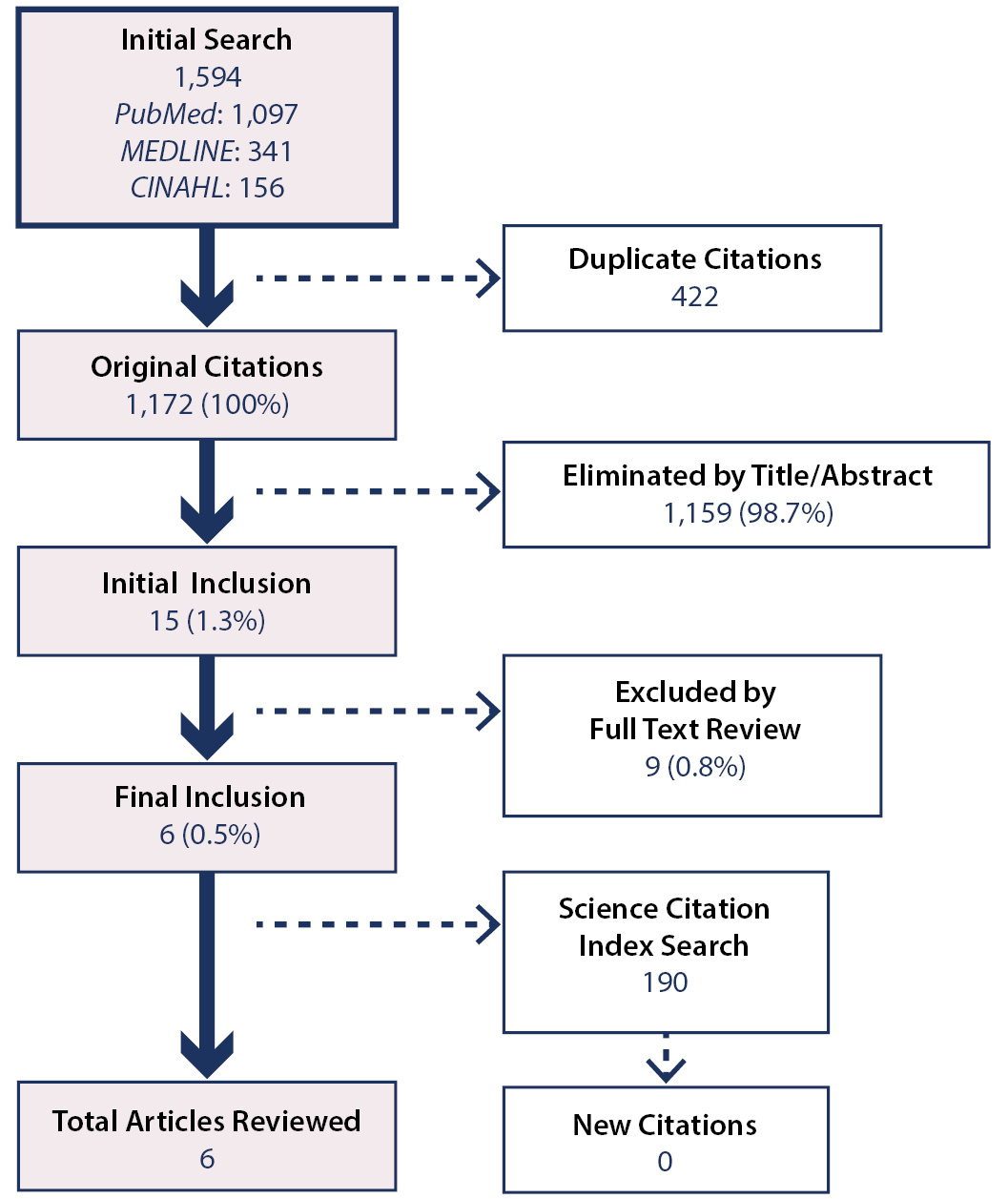

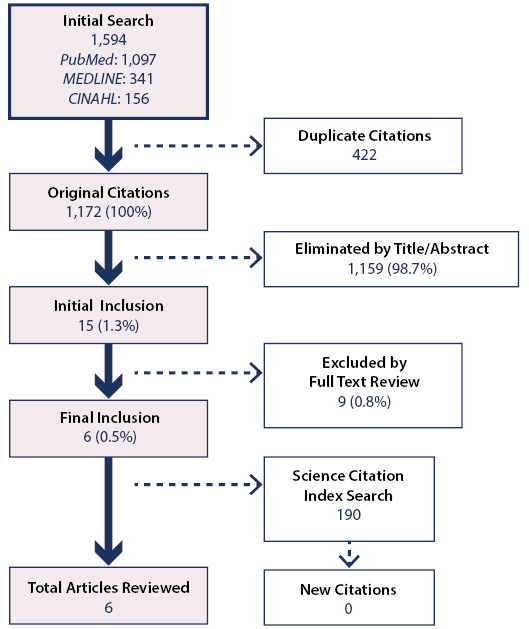

The search process returned 1,097 results from PubMed, 341 results from MEDLINE and 156 results from CINAHL. Of the 1,594 total citations, 422 were found to be redundant and eliminated. There were 1,172 original citations. Using inclusion and exclusion criteria (Figure 1), 15 citations were identified as relevant based on the review of the title and abstract. Full-text review eliminated another 9 citations leaving 6 citations eligible for study inclusion. Reasons for exclusion were technique papers (6), therapeutic IAI (1), hip dysplasia (1) and unrelated to FAI (1). The 162 references of these 6 eligible citations were searched for additional non-redundant citations eligible for inclusion; no additional citations were identified. In addition, the 6 eligible citations were cross-referenced in the Web of Science Citation Index as references in other studies that may have been eligible for review but missed in the original search process. All studies were indexed allowing them to be searched. These studies have been cited on 190 occasions at the time of this review. No additional studies were deemed eligible for inclusion. In total, 6 studies were included in this systematic review (Figure 2).16-21
Data points were chosen, after agreement by all authors, for extraction based on relevance to the needs of the study. Data points of choice were general study characteristics including demographic information such as subject age and sex, information on subject assessment with recommended screening tests during physical examination including impingement testing or flexion internal rotation testing,7 imaging studies including plain radiography and magnetic resonance imaging (MRI) or arthrography (MRA), methodological data including route of IAI administration, injection composition and timeline for IAI response assessment. The level of evidence was reported as defined by Wright et al.25
The purpose, inclusion and exclusion criteria, pain provocation maneuvers, definition of a “positive” response to IAI, number of “positive” responses, and conclusion was summarized from each study, when available. Specific information on the utility of diagnostic IAI was searched for and included sensitivity, specificity, positive predictive value, negative predictive value and accuracy, when reported. In addition, information on the correlation of symptoms, pertinent physical examination findings, pre-operative imaging study results, and pathology identified intra-operatively were noted.
The information abstracted from the included citations did not permit for a higher level of analysis due to heterogeneity of data. Frequency weight means were assigned to subject age. The more subjects evaluated in a study, the greater the weight that was assigned to that value. If a missing value was encountered, it was excluded from weighted mean and range calculations. The remainder of statistical analysis was descriptive.

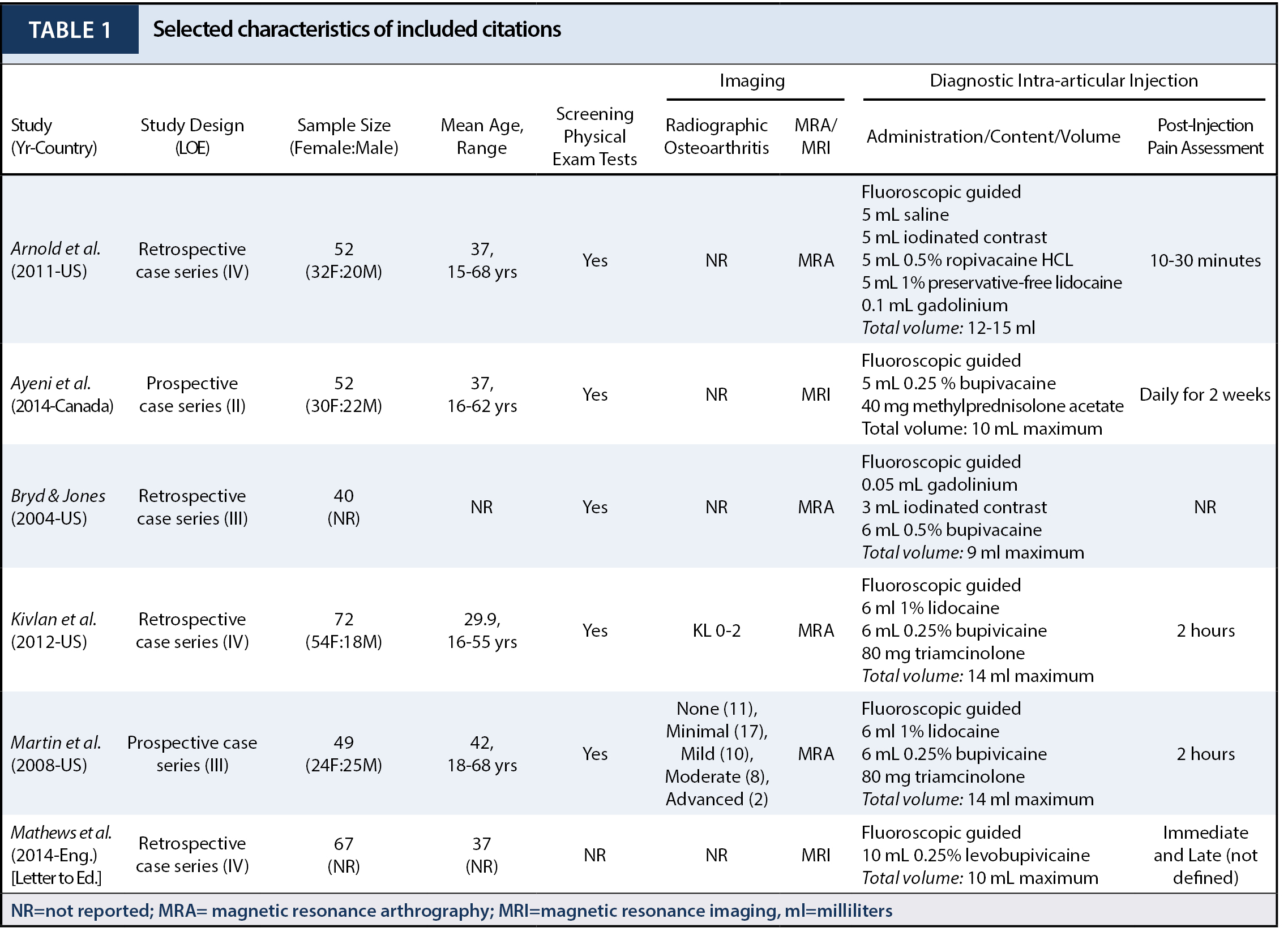

Of the 6 studies included in this review, 3 (50%) were level IV evidence, 2 (33%) level III and 1 (17%) level II evidence. Four studies (67%) took place in the United States. A total of 332 subjects were available for review. The weighted mean age of this cohort was 36.1 years (range, 29.9-42 years) with one study not reporting subject age. Four studies reported the sex ratio of their respective cohorts; 62.2% (140 of 225) of the subjects were female. Five studies (83%) specifically reported the use of physical examination to screen subjects for FAI/labral tears and all of these studies employed the use of either the impingement test or flexion-internal rotation test (Table 1).
Five studies used screening radiographs as part of the evaluation process, although the presence and degree of radiographic arthritis was reported by only 2 (33%) of the studies. MRI was used to confirm intra-articular pathology in all studies. Use of arthrography was common with MRA cited in 4 of 6 (66%) studies. The two studies employing MRI without contrast enhancement were based in Canada and England, suggesting regional variation in the diagnostic evaluation of labral pathology. Irrespective of geographic location, all studies (100%) employed fluoroscopic guidance to administer diagnostic IAI of the hip with or without subsequent arthrography. Bupivacaine was the most commonly used local anesthetic (4 of 6 studies), and 3 studies added steroid to the injection solution with triamcinolone as the most common addition. Reported volumes of injectate ranged from 9-15 milliliters.

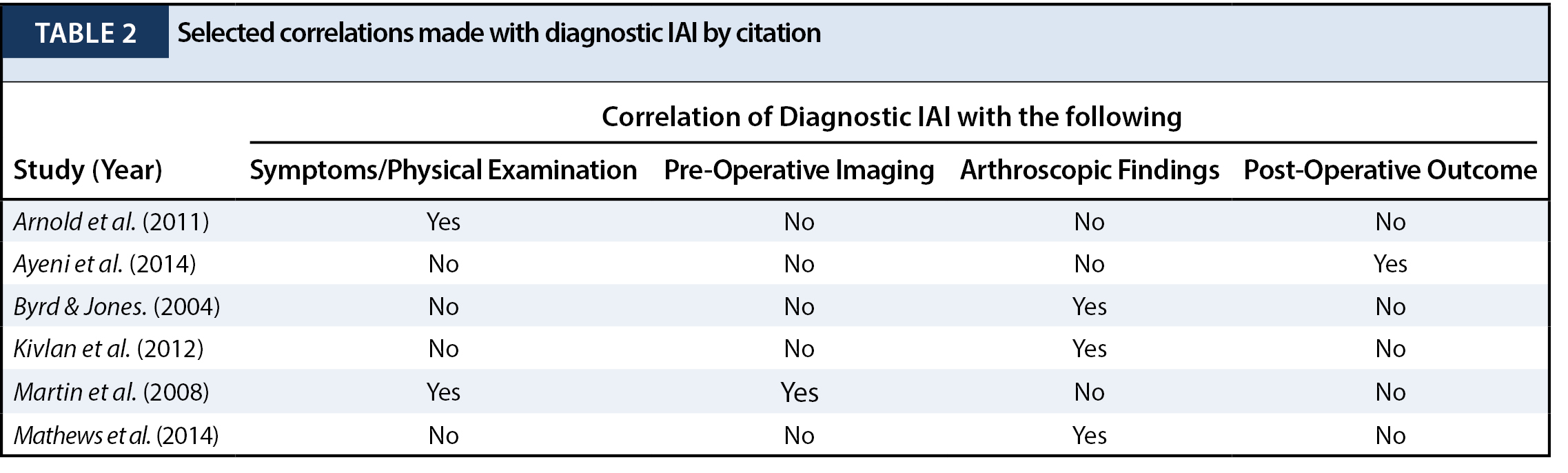

The method for assessing the degree of pain relief, indicating whether or not a “positive” response was achieved, varied among studies in this review (Table 2). Only one study required a “positive” response to be included in their analysis. Across all studies, the percentage of “positive” responses to pain varied from 55-100%. Overall, 85.8% (285/332) reported a “positive” response; however, the definition of a “positive” response varied according to each study. No study identified complications, adverse events or analyzed subjects who had no pain relief or worse pain after IAI.

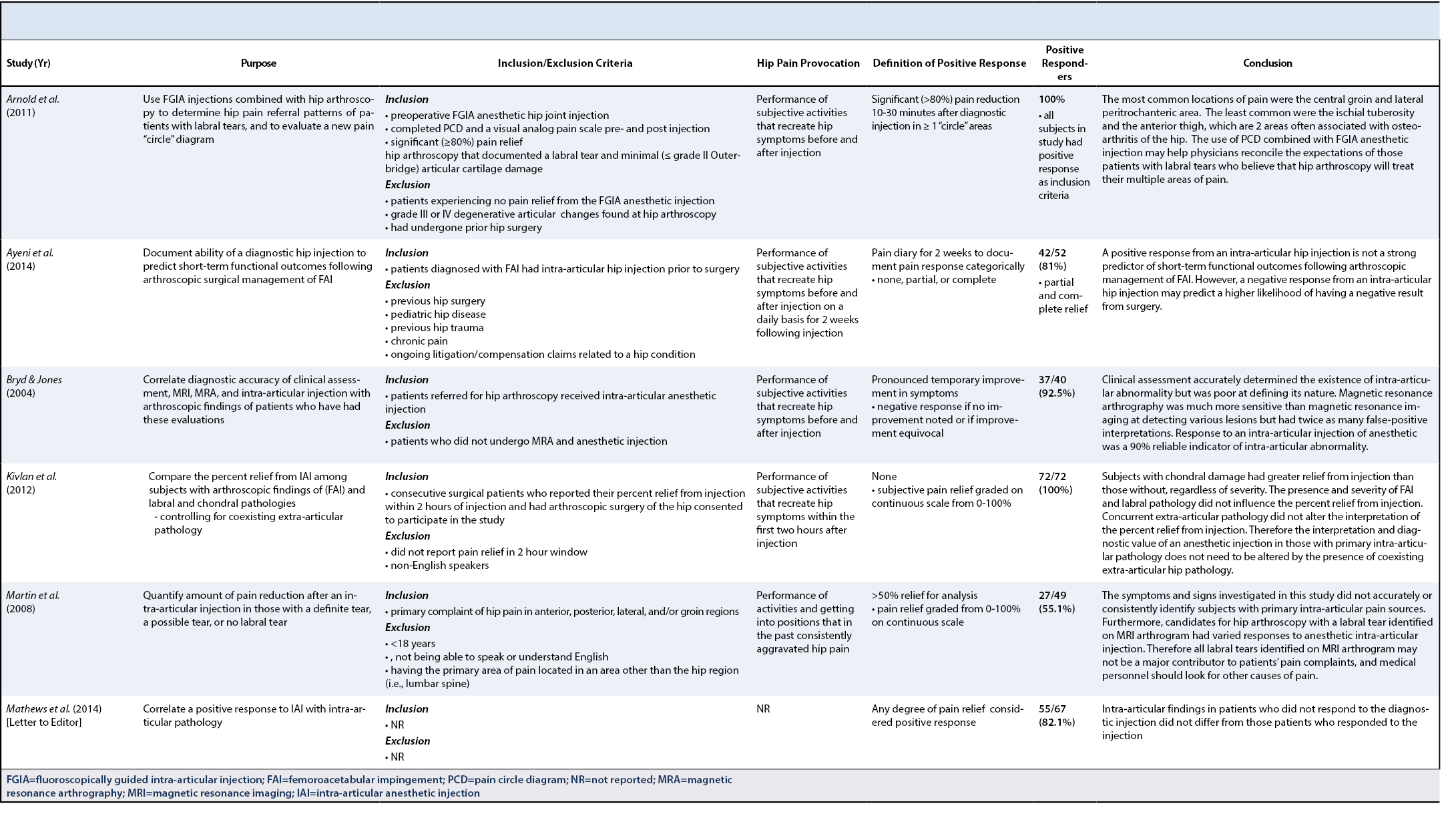

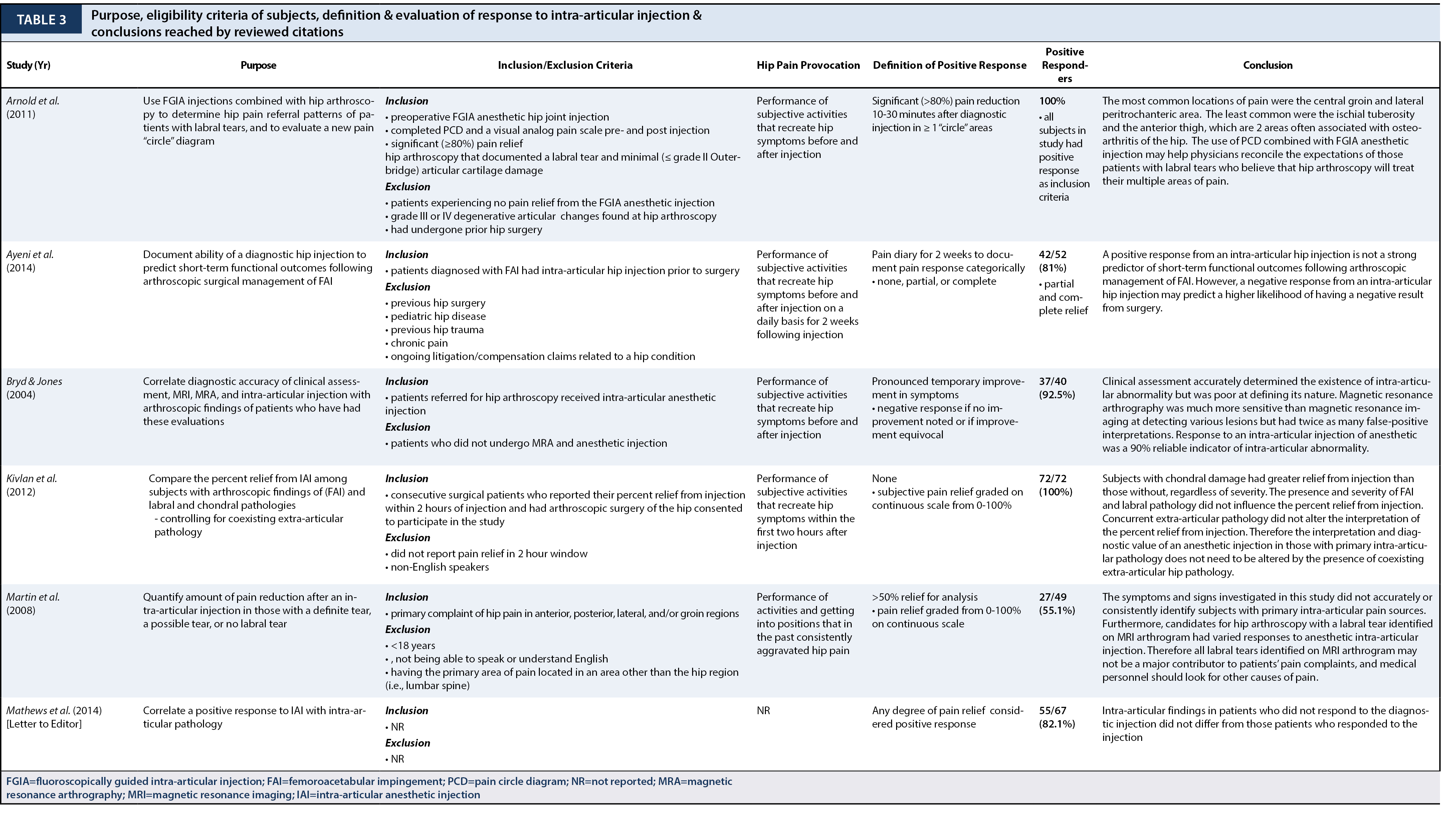

The purpose of the included studies was to associate the response of IAI to symptoms and physical examination in 2 studies, the findings of arthrography in 1 study, the intra-articular pathology seen during arthroscopy in 3 studies, and the post-operative outcomes in 1 study (Tables 2 and 3). No studies reported the diagnostic sensitivity, specificity, negative predictive or positive predictive values for IAI in confirming symptomatic intra-articular pathology. No studies were dedicated to reporting the response to diagnostic IAI in children or adolescents.
Emphasis has been placed on how the response to diagnostic IAI correlates with symptoms, physical examination, imaging findings, intra-operative pathology and post-operative outcomes. This review identified that not every patient with evidence of a symptomatic labral tear experiences pain relief after diagnostic IAI of the hip. However, the majority of patients experienced at least some degree of pain relief following this test. Unfortunately, there were patients who did not experience pain relief despite clinical, radiographic and intra-operative evidence of acetabular labrum injury.19,20 These results imply that IAI can aid in confirming a diagnosis of symptomatic labral injury but is not 100% reliable. Furthermore, it raises questions as to why patients with identifiable labral pathology and hip pain would not respond favorably to IAI.
Individuals harboring symptomatic labral pathology historically are young adults with activity-limiting groin pain. The mean age of the cohort in this review is older than that reported by a large, multicenter epidemiologic study on patients undergoing hip arthroscopy in North America.26 This may indicate that IAI is used more frequently among older patients in whom other reasons for hip pain, such as osteoarthritis or referred pain from disorders of the lumbar spine, may exist. Irrespective of age, clinical examination and plain radiography of these patients frequently non-specific.27 Many cite multiple symptoms, respond variably to physical examination and present with disparate radiographic abnormalities as well as intra-operative pathology according to sex.27,28
The majority of patients represented in this review were women. It is plausible that women, due to more subtle radiographic findings of impingement and preserved range of motion on physical exam, are more likely to undergo diagnostic IAI for confirmation of a suspected labral injury.28,29 Despite similar levels of pain, women tend to report greater functional disability and have less severe injury seen during arthroscopy, which may explain why women seem to undergo diagnostic IAI more often than men.28,29
It does not appear that symptomatology, results of physical examination or the presence of FAI predict the response to diagnostic IAI but the presence of labral or chondral injury may be influential.16-21 The severity of radiographic osteoarthritis has been positively correlated with relief from IAI,10 suggesting that the stage of disease may play a role in the overall degree of response to anesthetic injection. Martin and colleagues found no difference in pain relief between possible and definite tears of the labrum identified by arthrography.19 However, it should be noted that 20% of this cohort consisted of patients with moderate to severe radiographic osteoarthritis. In this setting, pain from osteoarthritis may obscure relief from pain attributable to labral pathology. Therefore, the use of IAI to diagnose symptomatic labral pathology in patients with considerable, radiographic arthritic burden may be of little use.
Several authors have associated pain relief occurring after diagnostic IAI with intra-articular pathology identified at the time of arthroscopy.18,20,21 Byrd and Jones were the first to report that pronounced transient relief of hip-related symptoms after IAI was 90% accurate in identifying an intra-articular abnormality, demonstrating the potential clinical utility of this test.18 To that end, Kivlan et al. sought to determine if extra-articular pathology significantly affected patient-reported responses to IAI in patients with arthroscopically proven FAI.21 It was found that extra-articular pathology did not significantly influence degree of pain relief and that patients with any degree of chondral damage experienced significantly greater pain relief than those without chondral injury. Further, the severity of FAI and labral abnormalities did not alter the response to IAI. It is interesting to note that among patients with less than 50% improvement of symptoms after injection, the incidence of chondral lesions adjacent to labral pathology was low. Mathews and associates noted labral pathology that was associated with a mean of 2.3 chondrolabral lesions per hip joint during arthroscopy of the hips that responded to anesthetic injection.20 The pooled evidence suggests that diagnostic IAI of the hip may confirm an intra-articular pain generator but is non-specific. There are many potential sources of intra-articular pain; this makes it difficult to discern between labral or chondral injury as the primary pain generator especially when the presence of both may have an additive effect on pain. Other potential intra-articular etiologies of hip pain that may respond favorably to IAI include loose bodies from osteochondromatosis, inflammatory synovitis and synovial tumors including pigmented villonodular synovitis. Extra-articular sources of hip pain that must be accounted for include referred pain from pathology of the lumbar spine or sacroiliac joints, femoral neck stress fractures and soft tissue injuries such as sports hernia and iliopsoas tendonitis. Surgeons should remain cognizant of this and always pair the response to diagnostic IAI with patient history, results of physical exam and imaging findings in order to eliminate or identify confounding sources of hip pain in the setting of suspected labral injury.
A recent investigation by Ayeni et al.17 looked to determine if the response to pre-operative IAI was predictive of short-term post-arthroscopic outcomes. Finding that not all patients who experienced complete or partial pain relief from IAI had satisfactory (Modified Harris Hip Score >70) outcomes, it was concluded that a positive response to IAI is not a strong predictor of clinical outcomes and that a negative response may predict an unsatisfactory post-surgical outcome. The authors recognized several aspects that limit the application of their findings including small sample size and short duration of follow-up for outcomes.
Prognostic indicators of functional outcomes following hip arthroscopy have received much attention. Recognized predictors of poor outcomes after surgical management of FAI include increasing age, presence of arthritic changes, longer pre-operative symptom duration and lower baseline scores on functional outcome measures.30 However, future studies on this topic should also report on the relationship between the response to IAI and pre-operative patient characteristics such as joint space narrowing and progressive severity of OA that have been identified as influential in portending worse surgical outcomes among patients undergoing hip arthroscopy.31,32
Strengths and Limitations
The strengths of this review are that we have summarized the literature on an important but poorly understood diagnostic tool for hip arthroscopy candidates. By doing so, our goal is to enable orthopedic surgeons who use diagnostic IAI of the hip to recognize the strengths and weaknesses of this test. We acknowledge the limitations that are inherent to any systematic review. Most of the studies were conducted by high volume hip arthroscopists; introducing selection bias that cannot be accounted for secondary to practices in patient selection and referral patterns. The use of broad search criteria as well as specific inclusion and exclusion criteria help to avoid a selection bias. The overall low quality of evidence and variability of study methodology and reporting prevented higher-level analysis. No studies have taken an in depth look at patients who experience no relief or worse pain after injection. False negative results do occur and post-procedural pain, potentially related to technique, has been reported to be prevalent after arthrography of hip. Further studies are needed to elucidate why and in which patients these responses occur.18,20,33-35 The information conveyed in this review is not applicable to children and adolescents, consistent with a recent review on outcomes of hip arthroscopy in skeletally immature patients.36 The few studies that exist on this topic make it difficult to provide recommendations for proper use of diagnostic IAI in clinical practice.
Not every patient with a tear of the acetabular labrum experiences pain relief after diagnostic IAI. Based on the available studies, more women than men undergo IAI. Due to inconsistent reporting and lack of standardization in the methodologies for assessing the degree and significance of response to IAI, it is unclear if diagnostic IAI confirms symptomatic labral injury or non-specific intra-articular injury. Well-designed studies are needed to determine the clinical significance of pain relief after IAI among patients considered to be candidates for hip arthroscopy.
